Description:

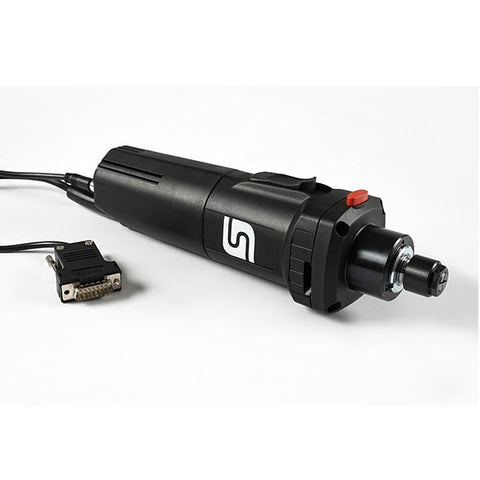

A milling motor has to reliably produce high precision results. The MM-1000 DI is a milling spindle "made in Germany" that is manufactured under strict quality controls. Due to the precise coordination of all components, the milling motor 230 V operates with maximum concentricity. Additionally, the MM-1000 DI has a variable speed setting that can be controlled manually or via the gantry interface. The labyrinth seal protects spindle and bearings against dust and debris. With a sound level of only 71 dB (A), the milling motor operates extremely silent.

• Input voltage (AC): 230 V
• Rotary speed: 4.000 - 25.000 rpm
• Power: 1000 W
• Extremely silent: 71 dB (A)
• Digital electronics with constant speed under load, soft start-up, idle speed reduction and overload protection
• Concentricity (cone):< 0,01 mm
• Concentricity (end mill): < 0,05 mm (25 mm distance to cone);
• Labyrinth seal to protect spindle bearing against foreign particles
• < />External gantry interface
• For wood, metal, plastics, foam, polystyrene, stone
• Weight: 1,65 kg

• 1x milling motor MM-1000 DI
• 1x collet 3,175 mm
• 1x spanner
• 1x sensor cable 4 m incl. PWM converter
